Sustainable refrigerants. R290 (GWP 3) and R32 (GWP 675).
RP Green Chiller with Environmentally-Friendly Refrigerants
Environmental sustainability and performance Temperature range: from 1°C up to 25°C
-20 -10 0 10 20 30 40 50
High energy savings, low environmental impact, compliance with stringent European regulations: green RP model chillers, with R32 or R290 refrigerant, are the industrial refrigeration solution of the future. Small footprint and provision for remote control are Frigofluid’s signature to these innovative equipment.
Compliance with stringent European standards. R290 (GWP 3) and R32 (GWP 675) comply with the newly revised EU Regulation No. 517/2014 and EU Regulation No. 1907/2006 “Reach.”
Small footprint. Ideal for small facilities and small spaces.
Innovative components. Scroll compressors, micro-channel condensers.
Prepared for remote monitoring. A serial port can be combined with the machinery for interface connection with remote station.
RP industrial chillers with green refrigerants: description
The new range of Frigofluid RP series air chillers is the answer to the increasingly stringent requirements for energy efficiency, environmental sustainability and performance in industrial refrigeration.
Their key feature is their low environmental impact: they use natural refrigerants with low GWP (Global Warming Potential), namely R290 (propane) and R32 (difluoromethane). These gases have no potential to form PFAS (perfluorinated alkylated substances) when broken down in the atmosphere.
RP chillers are available in 8 models with cooling capacities ranging from 5 to 35 kW and operate over a flow temperature range of 1°C to 25°C.
With the new range of RP chillers, Frigofluid confirms its commitment to finding innovative and sustainable solutions for industrial refrigeration. RP chillers offer the perfect integration of energy efficiency, environmental friendliness and high performance, representing the ideal choice for companies wishing to reduce their environmental impact and optimize operating costs.
Tell us your needs RP industrial chillers with R290 refrigerant: technical characteristics
- Refrigerant: R290 (propane).
- Cooling capacity: 5 to 12 kW.
- Flow temperature: 1° C to 25°C.
- EER: up to 4.79.
- SEPR HT: up to 6.79.
- Environmental impact: low GWP, no PFAS.
- Components: scroll compressors, micro-channel condensers.
RP industrial chillers with R32 refrigerant: technical characteristics
- Refrigerant: R32 (difluoromethane).
- Cooling capacity: 15-35 kW.
- Flow temperature: from 1° C to 25°C.
- EER: up to 3.85.
- SEPR HT: up to 5.66.
- Environmental impact: low GWP, no PFAS.
- Components: scroll or rotary compressors, micro-channel condensers.
Series components on all Frigofluid chillers
1. EC (electronic control) Axial Fans
2. Microchannel Condenser
3. Compressors
4. AISI 316 SS Plate Evaporator
5. Storage tank
6. Electronic Microprocessor for the hydraulic and Chilling Systems
1
EC (electronic control) Axial Fans
As standard over the entire production range. They guarantee high performance at top speed and control in the slowrunning range.
2
Microchannel Condenser
Featuring a wide exchange surface and subcooling system plus epoxy paint surface treatment as standard.
3
Compressors
Hermetic systems of “Scroll” type on all models in the catalog.
4
AISI 316 SS Plate Evaporator
Or tube-nest evaporator. With foam closecell thermal insulation.
5
Storage tank
In zinc-plated steel featuring close-cell foam insulation and a range of accessories: air exhaust, safety valve, discharge valve, fittings for level control.
6
Electronic Microprocessor for the hydraulic and Chilling Systems
Allowing control of the (glycol-added) water temperature and display of the chilling gas operating pressure with remote diagnostics possibility: an alpha-numeric display shows the unit’s working status. In the units with more than one compressor, the microprocessor controls their starts on a rotation basis in order to balance their operating hours.
Manual By-Pass
An accessory designed for the function of adjusting the flow rate of water or water/glycol from a hydraulic circuit so as to obtain a working condition suitable for the chiller and its use. This adjustment is carried out by controlling the discharge pressure of the chiller pump.
Expansion Vessel Kit
An accessory designed for the function of containing changes in "hydrostatic" pressure in a type "C" (pressurized) hydraulic circuit due to changes in water and/or water/glycol liquid temperature.
Outdoor Kit
This is an accessory consisting of 3 elements that ensure IP 55 watertightness of the electrical panel and its components for outdoor installation without any canopy or other protection. With OPT 01250 a cover is applied on the electrical box that protects the gasket of the switchboard door.
RTU Modbus
Allows communication of data from our control panels with supervisory and/or other systems through a modbus communication but also OPC UA and PROFINET.
Automatic Loading
Hydraulic system aimed at controlling the filling from water or water/glycol of hydraulic circuits. Consisting of accessories and fittings, it is installed on RW power plants, RAW coolers, and systems in general.
Water Filter
Mechanical filter installed on the water inlet pipe to the chiller (return). The filter usually Y-type can be bronze for sections up to 2" ½ max 3", or spheroidal cast iron flanged for sections 3" and up.
Some Frigofluid projects
Industrial Chillers and Dry Coolers for Almag
There is Frigofluid's signature on the refrigeration of Almag's production processes: an opportunity to strengthen relations with a large company in the Brescia area, recognized worldwide. Two industrial chillers and a dry cooler were supplied to the company.
Read more
Low-Temperature Industrial Chiller for a Biogas Player
The biomass sector is one of the most interesting for its implications related to energy recovery: Frigofluid supplied an industrial chiller to an international broker, with final installation in Colombia.
Read more

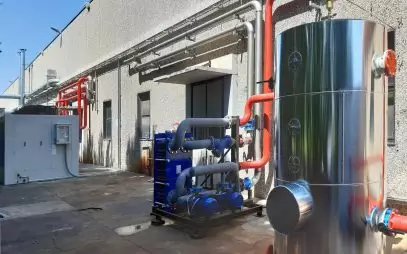

Saving Energy with a Turnkey Refrigeration System
A large plastics processing company needed to renew its refrigeration plant in its entirety. During the summer shutdown and the concomitant production stoppage, we built a turnkey refrigeration plant complete with: chillers, adiabatic coolers, heat exchanger, electrical panels and storage tank.
Read moreResources
